Product Design

Stunning Designs and
Advanced Performance

Customized
Product Design

Awal Gulf Manufacturing’s Design and Development department specializes in creating customized product designs according to customer needs. We provide efficient and reliable solutions for application in any commercial or industrial buildings. Awal Gulf Manufacturing’s Design and Development department has the flexibility and engineering expertise to meet even the most challenging project requirements.

1 customized prodict design-min
2-customized-AHU

Customized
Air Handling Units

Our custom equipment is confined only by the limits of a designer’s imagination. Unlike standard commercial systems that offer limited design or operational flexibility, every AHU is uniquely tailored for its specific application. This type of versatility results in a distinct advantage for applications in hospitals, pharmaceutical firms, schools, public buildings, food processing facilities, manufacturing plants, hotels, commercial office buildings, and various other industrial applications.

Satisfying airflow requirements from 500 to over 40,000 CFM, Awal Gulf Manufacturing’s AHU’s are self-contained, and designed for indoor or outdoor installation. We offer options such as factory-installed controls and piping, which reduce job site installation costs and improve project performance. Additionally, special options for energy saving like heat recovery wheel, heaters and heat pipes are also offered as part of the customized AHU’s.

Customized Central
Air Conditioners

Awal Gulf Manufacturing’s Design and Development department can further customize the standard Central Air Conditioning units as per the customer’s diverse needs by the addition of:

  • Air plenum boxes
  • Bag filter/HEPA filter banks
  • Backward curved fans for high static applications
  • Economizers
  • Top Throw and Down Throw Air flow applications.
  • Special Electrical Features such as
  • Phase loss protection
  • Fan speed controller
  • Variable frequency drive compatible motors
  • External Overload protection for compressors and motors
  • Anti-Corrosive coated fins for condenser coils and copper fins.
Screenshot 2020-07-14 at 10.49.08 AM
Screenshot 2020-07-14 at 10.49.27 AM

Product Development Tools

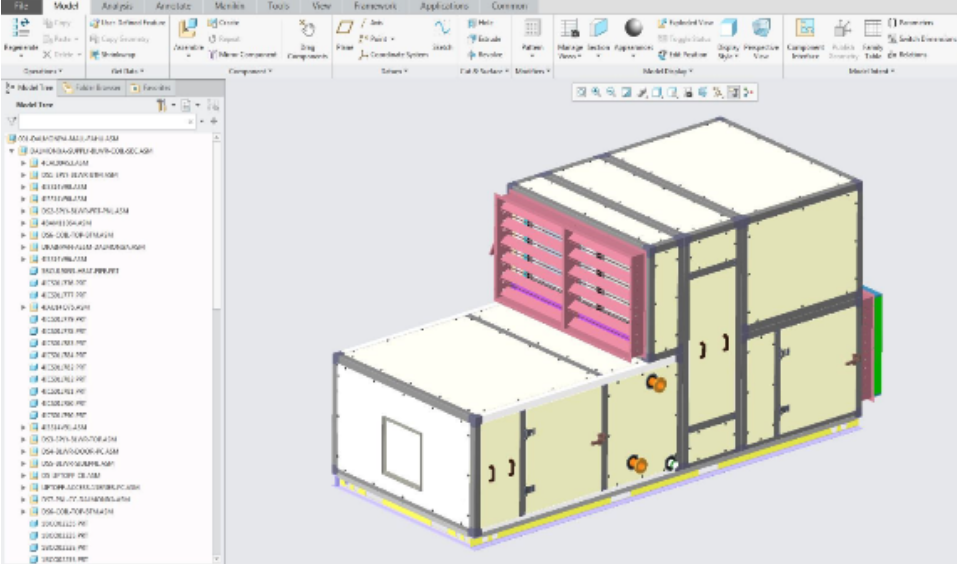

Pro/ENGINEER is a 3D product modeling software that our designers use. It enables them to design products in the virtual world and visualize a concept before finalizing it. This tool allows the concept to be conveyed through drawings to enable our manufacturing team to produce them, thus resulting in a lot of saved time.

Coil Selection Software

Coil Selection software is a thermal engineering tool which allows HVAC engineers to design the very nervous system of an air conditioner; the outdoor and indoor coils. It is customized to take on any type of ambient conditions and the type of refrigerant and geometry of the coil to come out with the best possible options as per the user’s inputs, in the least possible time

Screenshot 2020-07-14 at 10.49.37 AM
Asset 4

Product Design Capabilities

  • Window Air Conditioners
  • Split Air Conditioners
  • Central Air Conditioners
  • Residential Roof Top Packaged from 3 to 6TR
  • Commercial Roof Top Packaged from 8 to 25TR
  • Large Capacity Roof Top Packaged from 30 to 90TR
  • Ducted Splits from 4 to 120TR
  • Heat Pumps
  • Chilled Water Decorative splits , FCU
  • Air Handling Units
  • Multi Splits/VMS
  • Chest Freezers
  • Chillers with Scroll Compressors up to 200TR
  • Visi Coolers and Chest Freezer
  • Air Purifiers
  • Ventilation Units
